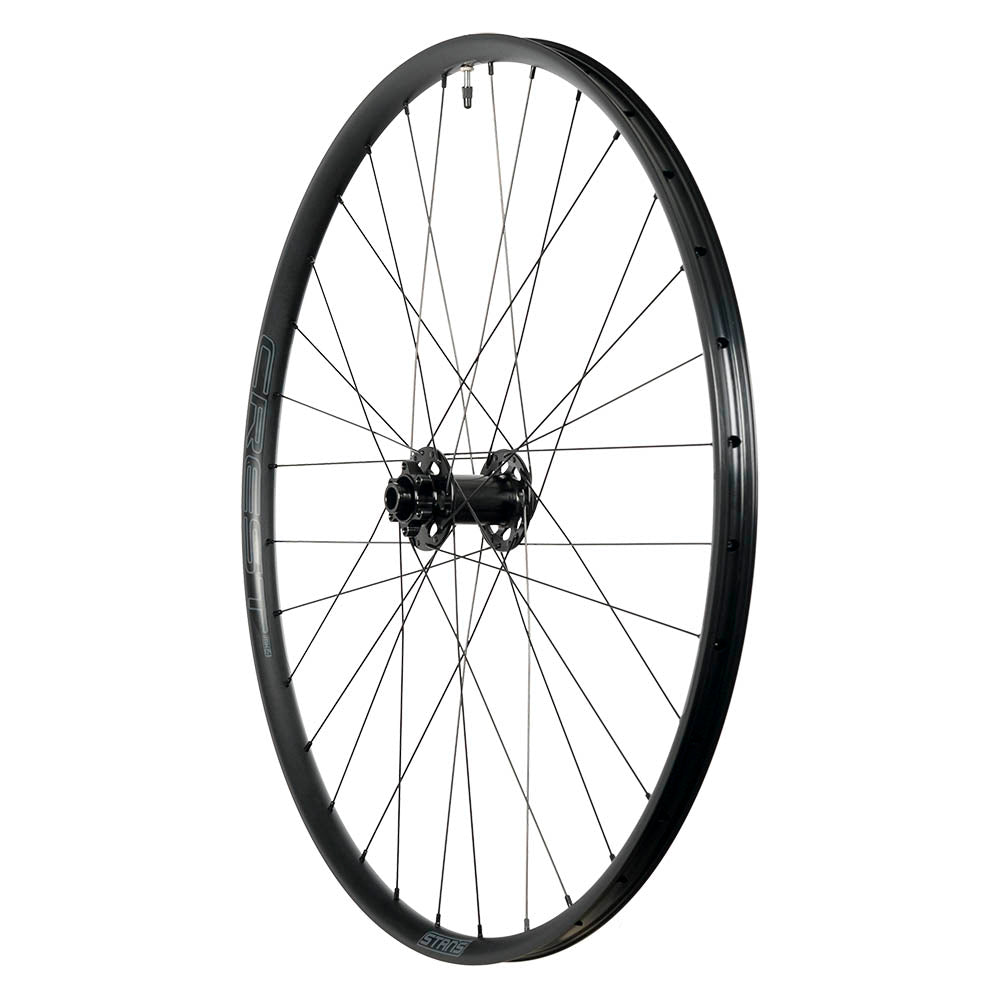

Stan's NoTubes - Wheel Front, Crest MK4 27.5, 15x110, Gray

EXPECTED AVAILABILITY DECEMBER 2021

Features:

- 25mm rim width optimized for Gravel and XC tires up to 2.3"
- Light and durable 6069 aluminum with welded joint and reinforced spoke bed
- BST Asymmetric design combines Stan's legendary easy tubeless inflation with a stronger more balanced wheel build
- New high-end premium hub
- Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy
Serviceability
Connection program includes 5-year hub warranty, 3-year rim warranty, 1-year crash
replacement, and $10 donation to trail maintenance or advocacy group of your choice

Race Pace and All-day Adventure

When you're looking for a lightweight Gravel and XC wheelset built to roll fast and last forever, the aluminum Crest MK4 is your wheelset. "Crest" is the name Stan gave one of his original rim designs, and today it belongs to one of the most advanced rims made. Built of 6069 alloy and featuring a reinforced spoke bed and welded seam, the 25mm wide Crest MK4 rim is made to handle both the higher pressures of 40mm gravel tires, as well as the lower pressures of 2.3" mountain bike tires.

The asymmetric design of the Crest MK4 rim improves spoke angle to create a stronger wheel, while still offering the ,easiest to inflate and most reliable airtight tubeless seal found only on Stan's patented Bead Socket Technology rims. Built for people who ride, by people who ride, the Crest MK4 wheelset relies on the proven strength of traditional J-bend spokes. As part of Stan's commitment to make easily serviceable wheels a rider can own for many years, all MK4 series wheels that are the same diameter share a single, very common, spoke length. Front and rear and both sides all use a single length, making replacing damaged spokes as easy as possible.

Available with Shimano Micro Spline, HG, or SRAM XDR freehub, and 6-bolt or Centerlock brake style, with options to fit all popular axle configurations.Tubeless ready with rim tape installed. With a lightweight asymmetric tubeless rim laced to one of the most reliable and fastest-rolling hubs made, the Crest MK4 sets the bar for Gravel and XC wheelsets.

What's Included:
Crest MK4 wheels include pre-installed tape for tubeless use and presta valves.

Technology:
BST-Asymmetric, M-pulse, WideRight

Specs:

Rim Internal Width:
25.0mm

Rim External Width:
28.4mm

Rim Depth:
18.0mm

Spokes:
Sapim D-Light 2.0/1.65/2.0

Nipples:
Sapim Double Square Alloy Black

Hub:
M-pulse

Hole Count:
32-hole, 32-hole

Drilling Style:
Symmetrical

Rim Material:
6069 Aluminum Alloy

Hub Color:
Black

Rim Color:
Black

Brakes:
Disc only

Rim Weight:
374g (27.5") / 399g (29")

Wheelset Weight:
1566g (27.5") / 1638g (29")

Front Wheel Weight:
707g (27.5") / 743g (29")

Rear Wheel Weights:
859g (27.5") / 895g (29")

ERD:
563mm, 1.5mm Offset mm (27.5") / 601mm,1.5mm Offset (29")

ETRTO:
584x25.0 (27.5") / 622x25.0 (29")

ISO:
27.5"x28.4mm / 29"x28.4mm

Tape:
27mm

Valve:
35mm Presta

Max Spoke Tension:
115kgf (1130N)

Max Rider Weight:
190lbs (86 kilo)

Max Pressure with 40mm Tire:
55psi

Max Pressure with 2.00" Tire:
46psi

Max Pressure with 2.30" Tire:
39psi
