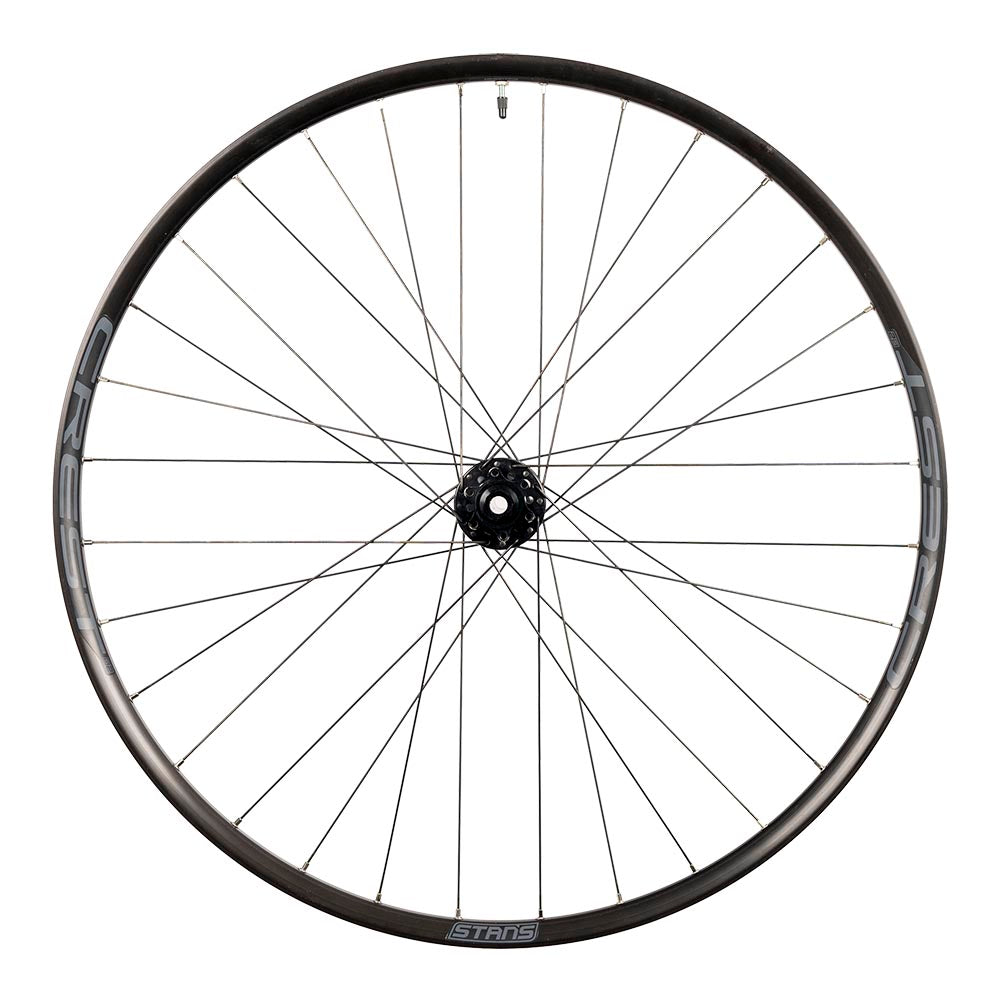

Stan's NoTubes - Wheel Front, Crest S2 29,15x110, Gray

Features:

- 25mm rim width optimized for Gravel and XC tires up to 2.3"
- Patented BST low-profile rim shape for easy tubeless inflation and the most reliable seal
- 6061 aluminum with sleeved joint and stainless steel rim eyelets
- Matched wheelsets use traditional J-bend lacing and share a single spoke length for easy
serviceability
- E-sync hubs offer fast 8.18° engagement with reinforced pawls
- Enduro bearings with double-row freehub bearing and cromoly axle offer 47% increase in
max torque capacity over Neo hubs
- Connection program includes 3-year E-sync hub warranty, 3-year S2 rim warranty, 1-year
crash replacement, and $10 donation to trail maintenance or advocacy group of your choice

Tubeless Performance for XC and Gravel

Upgrading to a set of quality tubeless wheels is the number one way to improve the ride of your XC or Gravel bike. Tubeless offers more comfort and control with less rolling resistance, and when it comes to tubeless, nothing beats the easy inflation and performance of Stan's patented Bead Socket Technology. First introduced over 15 years ago, the original Crest rim design with BST helped launch the tubeless revolution. Today's Crest S2 wheels offer quick and easy inflation, the legendary airtight seal, and a 25mm width that offers incredible stability for 40mm to 2.3" Gravel and XC tires.

Constructed of 6061 aluminum with a reinforced spoke bed and eyeletted spoke holes for strength, the Crest S2 rim is built to last. The wheelset also features fast-engaging E-sync hubs built to handle the added weight and forces of eBikes and more aggressive riders. Thanks to cromoly axles, heat treated steel ratchet rings, double row Enduro bearings, and a pawl design that reduces stress on bearings, E-sync hubs are made to roll smoother longer. The E-sync's four pawls also provide quick 8.18° of engagement. S2 wheelsets with E-sync hubs are perfect for anyone looking for low maintenance and high performance. Like all Stan's wheels, the Crest S2 carries on a tradition of serviceability by using traditional J-bend spokes that are readily available. To make life even easier, matched Crest S2 wheelsets all use a single spoke length and their endcaps are readily available and compatible with previous Neo hubs.

The Crest S2 is an ideal replacement or upgrade for Gravel and XC bikes. Available with Shimano Micro Spline, HG, or SRAM XDR freehub, and 6-bolt or Centerlock brake style, with options to fit all popular axle configurations. Tubeless ready with rim tape installed. Whether rolling through your local trails, entering your first XC race, or setting out on a bikepacking gravel adventure, the Crest S2 wheelset can improve your ride.

What's Included:
Tubeless tape installed, requires additional valve stems.

Technology:
BST, E-sync, WideRight

Specs:

Rim Internal Width:
25.0mm

Rim External Width:
28.4mm

Rim Depth:
18.0mm

Spokes:
Sapim Race 2.0/1.8/2.0

Nipples:
Sapim Polyax Secure Lock 2.0 Brass Silver

Hub:
E-Sync

Hole Count:
32-hole, 32-hole

Drilling Style:
Symmetrical

Rim Material:
6061 Aluminum Alloy

Hub Color:
Black

Rim Color:
Black

Brakes:
Disc only

Rim Weight:
428g (27.5") / 457g (29")

Wheelset Weight:
1818g (27.5") / 1904g (29")

Front Wheel Weight:
831g (27.5") / 874g (29")

Rear Wheel Weights:
987g (27.5") / 1030g (29")

ERD:
564mm (27.5") / 603mm (29")

ETRTO:
584x25.0 (27.5") / 622x25.0 (29")

ISO:
27.5"x28.4mm / 29"x28.4mm

Tape:
27mm

Valve:
35mm Presta

Max Spoke Tension:
130kgf (1275N)

Max Rider Weight:
190lbs (86 kilo)

Max Pressure with 40mm Tire:
62psi

Max Pressure with 2.00" Tire:
46psi

Max Pressure with 2.30" Tire:
39psi
