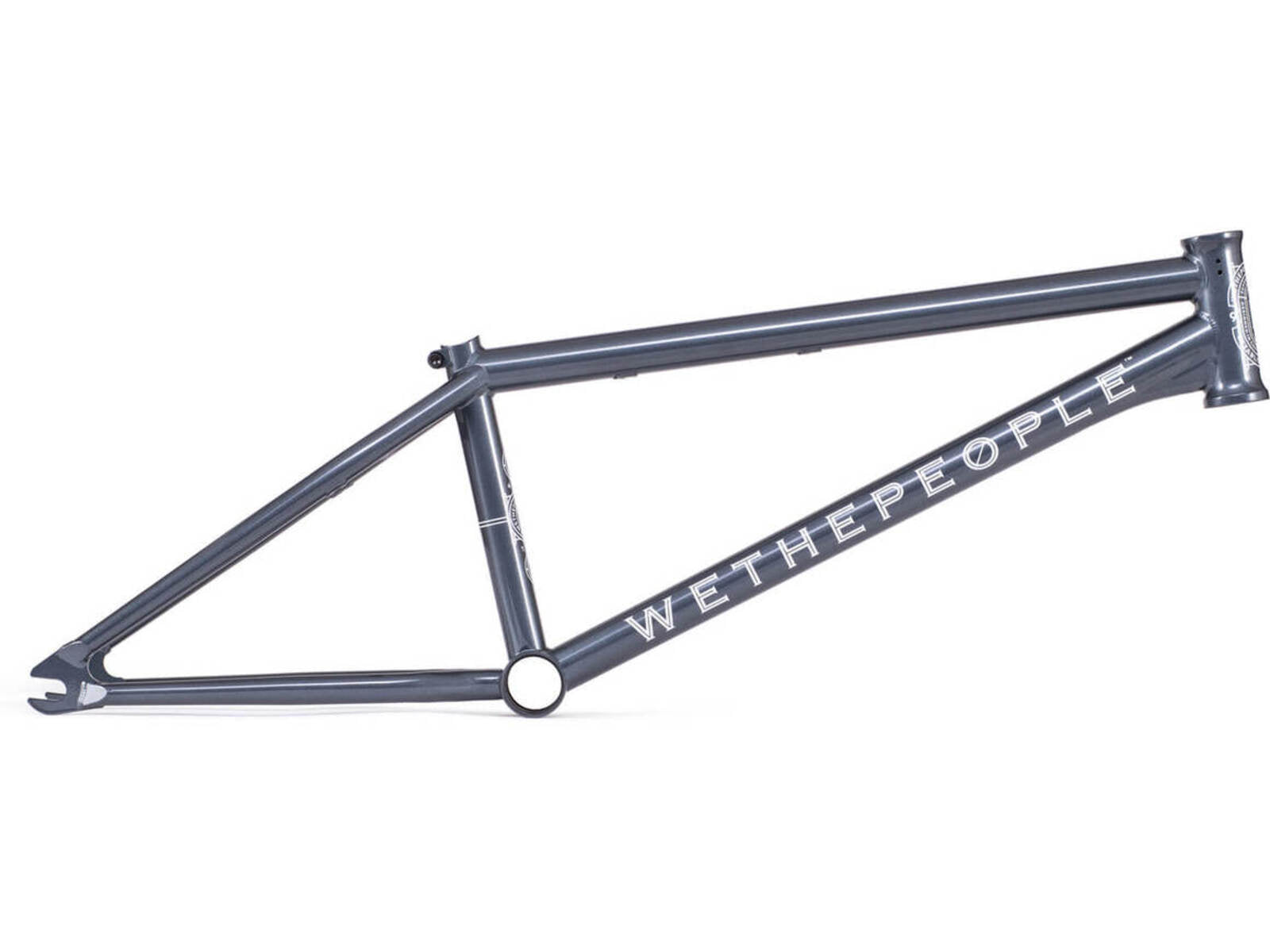

Envy XLT Frame

BOTTOM BRACKET: 74MM MID SIZE, CNC MACHINED AND HEAT-TREATED - HEAD TUBE: 120MM CNC MACHINED AND HEAT-TREATED, INTEG. H/SET, DRILLED FOR GYRO TABS - DROPOUTS: 6MM INVESTMENT CAST, HEAT-TREATED 4130 CRMO - BRAKES: PIVOT-3 REMOVABLE BRAKE MOUNTS, FRAME COMES WITHOUT REPL. BRAKE HARDWARE - SPECIAL FEATURES: • TECHNICAL MODERN FRAME DESIGNED WITH REDUCING WEIGHT WHILST RETAINING HIGH STRENGTH • HYDROFORMED TOP AND DOWN TUBE FOR SUPERIOR STRENGTH AND STIFFNESS • LARGER 1.8MM WELDING AT HEAD TUBE • WIDER REAR TRIANGLE ALLOWS CLEARANCE FOR A 2.4" TIRE • OVALIZED CHAIN STAYS FOR INCREASED TIRE & SPROCKET CLEARANCE • CNC SEAT STAY BRIDGE • TAPERED AND BUTTED TUBING TO REDUCE WEIGHT • 6MM SEAT CLAMP BOLT • INCLUDES LIFETIME GUARANTEE - WEIGHT: 4.8LBS / 2.11KG - TOP TUBE LENGTH: 20.5", 20.75", 21" OR 21.25" - CHAIN STAY LENGTH: 12.55" - 13.35" - OPTIMIZED FOR 12.75" W/25-9 - HEAD TUBE ANGLE: 75.25° - SEAT TUBE ANGLE: 71.5° - BB HEIGHT: 11.7" - STANDOVER HEIGHT: 8.75"
