Chaos Frame

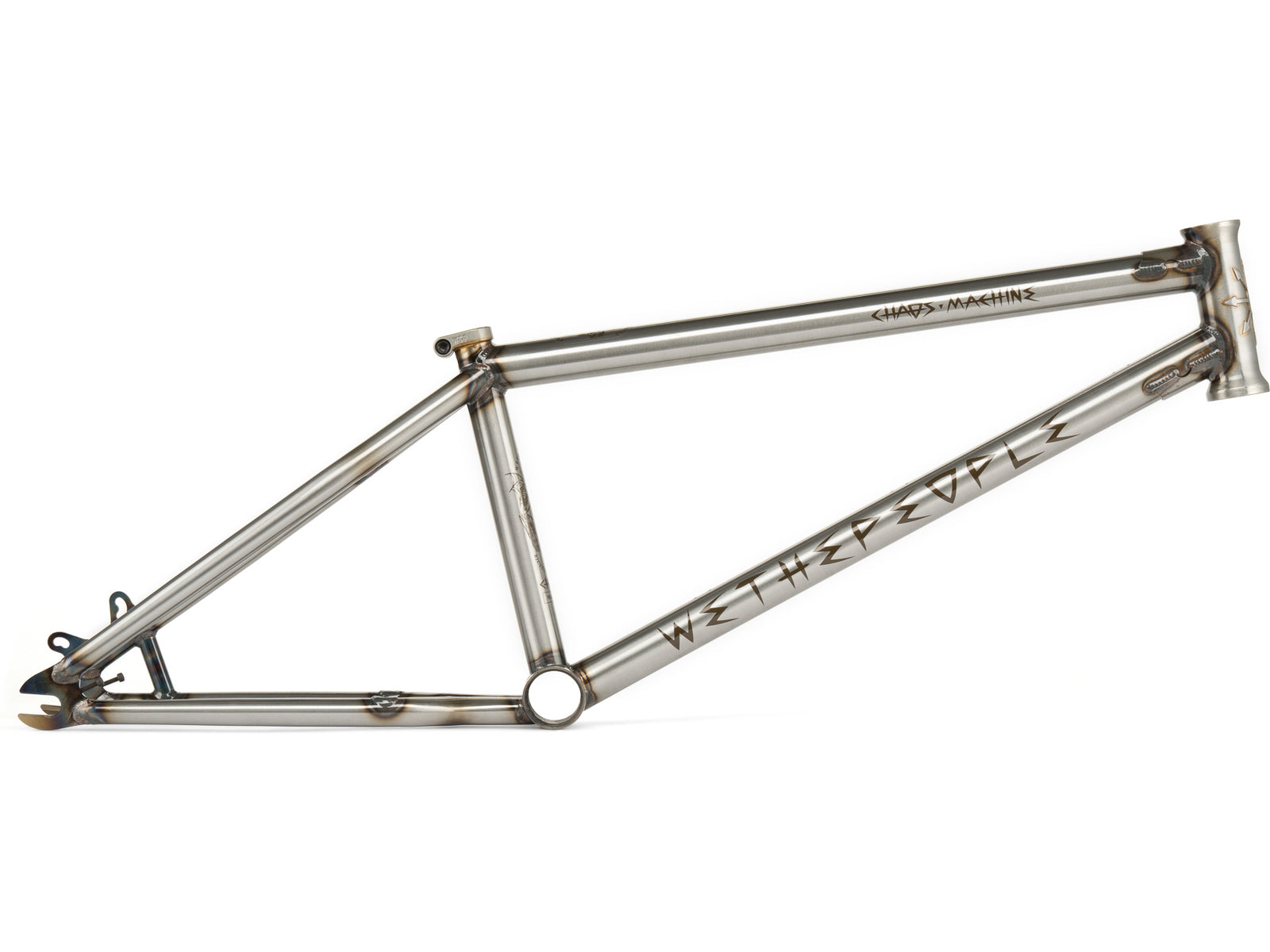

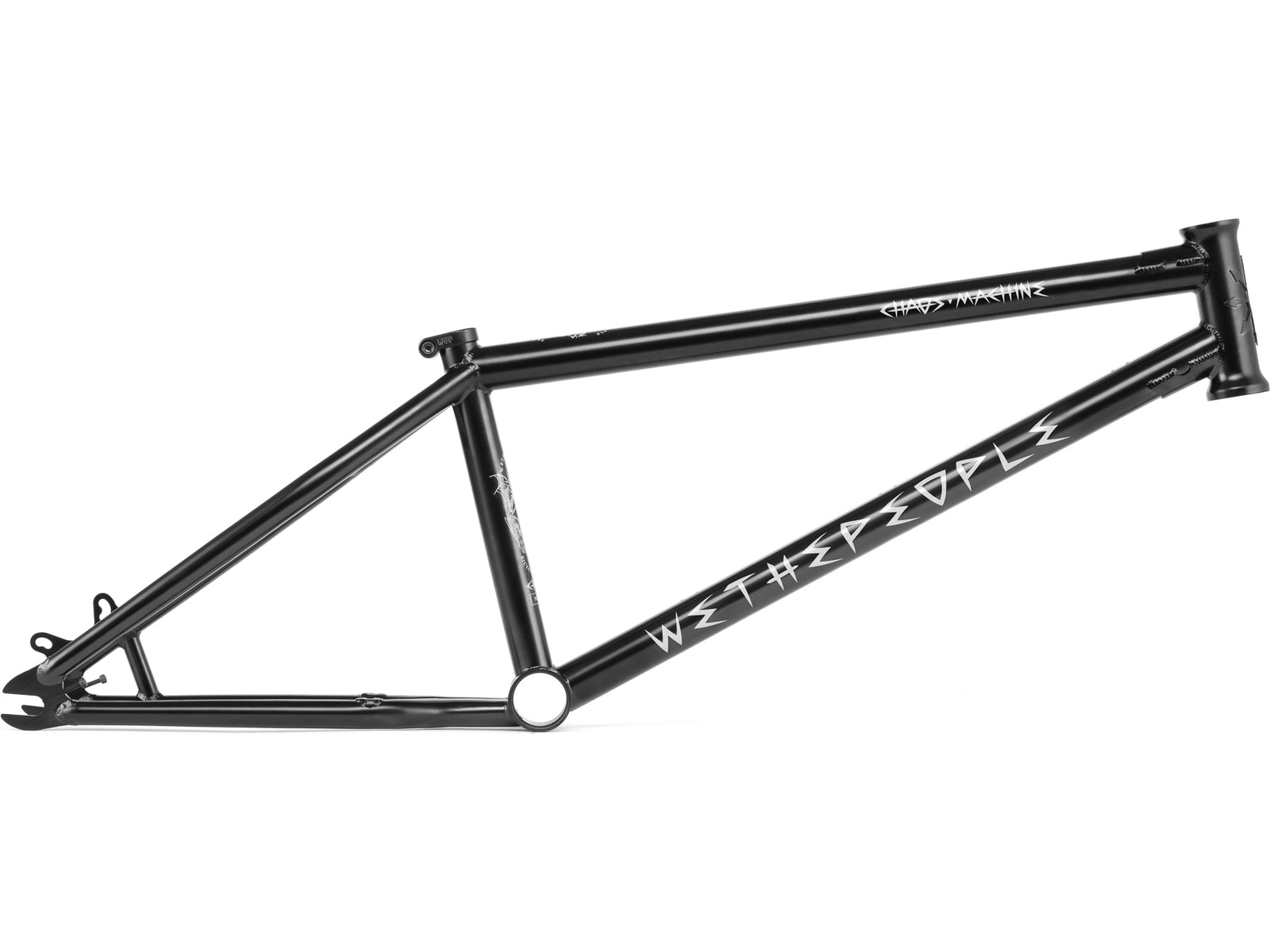

TUBING: BUTTED, JAPANESE SEAMLESS 4130 CRMO TUBING - BOTTOM BRACKET: 74MM MID SIZE - HEAD TUBE: 127MM CNC MACHINED AND HEAT-TREATED, INTEG. H/SET, BRAZED ON BADGE - DROPOUTS: MINIMAL SIZE, NOT SUITABLE FOR PEGS, 6MM CNC MACHINED HEAT-TREATED CRMO, INTEGRATED CHAIN TENSIONERS - BRAKES: DISC MOUNT FOR 120-160MM ROTOR AND U-BRAKE MOUNTS, FRAME COMES WITH REPL. BRAKE HARDWARE - SPECIAL FEATURES: • TYSON JONES-PENI SIGNATURE TRAIL/TRANSITION FRAME • LONG AND STABLE TRAIL GEOMETRY • IS DISC MOUNT FOR 120MM-160MM ROTORS & REMOVABLE U-BRAKE MOUNTS • UNIQUE DISC BRAKE MOUNT WORKS IN MULTIPLE CHAIN STAY POSITIONS • 127MM TALL HEAD TUBE FOR LESS SPACERS WITH AN UNCUT FORK • LARGER RADIUS STAY TUBING FOR A STIFFER AND STRONGER BACK END • CNC MACHINED SEAT STAY BRIDGE • DISC BRACE ON STAYS FOR EXTRA BRAKING STIFFNESS • LARGER 1.8MM WELDING AT HEAD TUBE • INVESTMENT CAST SEAT CLAMP • WIDER REAR TRIANGLE ALLOWS CLEARANCE FOR A 2.4" TIRE • WTP TOP TUBE AND DOWN TUBE GUSSET - COLORS: BLACK / GLOSSY RAW - WEIGHT: 2.40KG (5.3LBS) - 21.35" TT - TOP TUBE LENGTH: 21", 21.35" OR 21.7" - CHAIN STAY LENGTH: 14" - 14.75" / OPTIMISED FOR 14.1"/14.35"/14.7" WITH 30-9 GEARING - HEAD TUBE ANGLE: 74.25° - SEAT TUBE ANGLE: 71° - BB HEIGHT: 11.5" - STANDOVER HEIGHT: 9.5"
