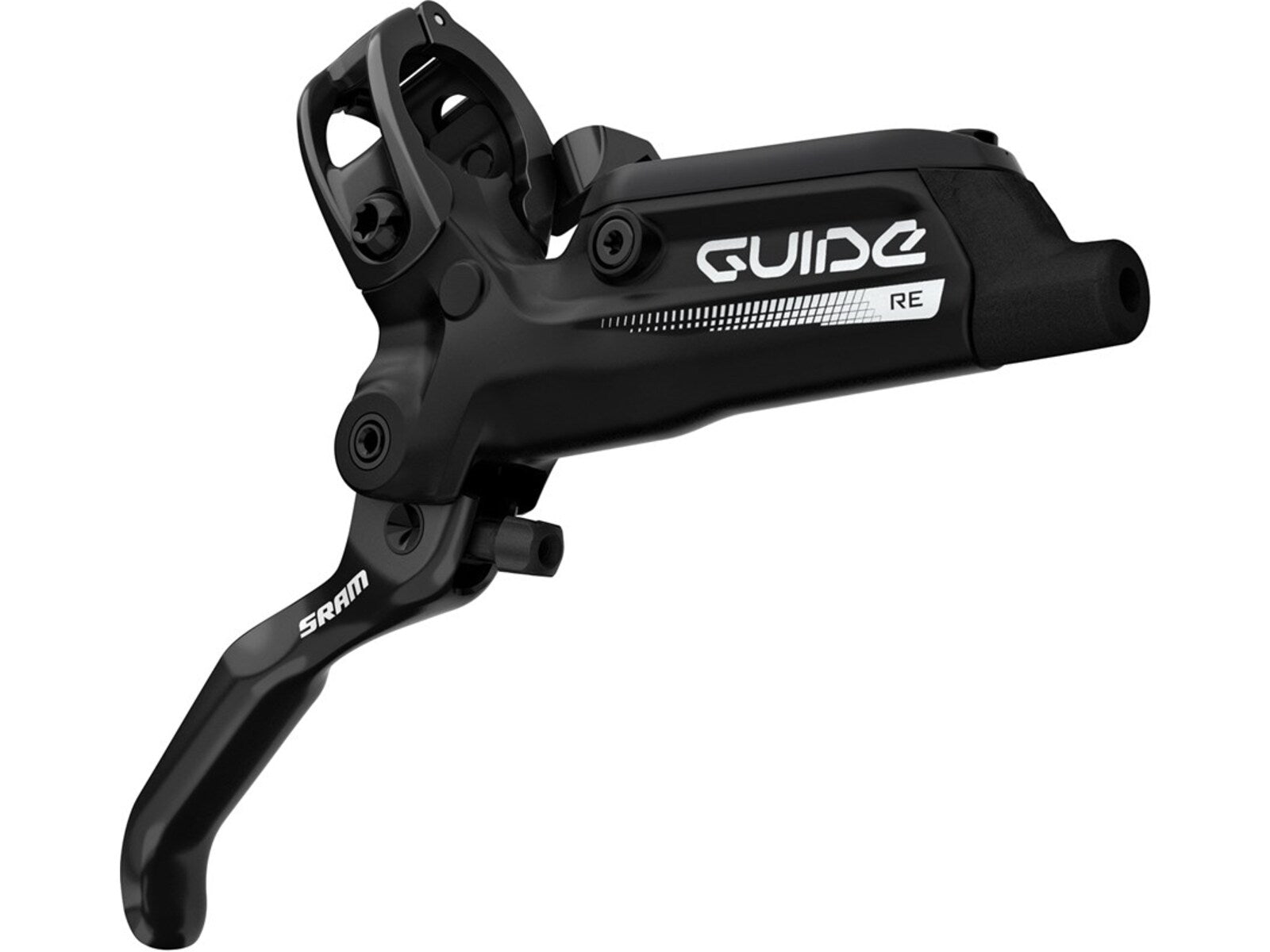

Brake Guide RE

Guide RE is SRAM's optimized braking solution for today's exciting category of E-MTBs, capable of handling the higher average speeds, more intense use and increased mass due to the presence of the motor and battery. It combines SRAM's proven Guide R lever assembly with a powerful 4-piston caliper derived from the gravity-focused Code brakes. Guide RE provides real, usable on-trail control—optimal power and modulation mean speed can be controlled in all terrain and in all situations, both uphill and downhill. - Application (DB): MTB - Brake type: Hydraulic - Blade material: Aluminum - Stamped - Color (DB): Gloss Black - Rec MMX clamp (not included): Stl(glossblk)bolt,blk clp - Orientation: Front, Rear - Pad type (Disc): Steel-backed metal sintered - Bracket (Disc Brake): Direct mount DIR - Hose length (mm): 1800mm, 950mm - Rotor (AM only): n/a - Pistons: 4 - Piston material: Phenolic Plastic - Rotor type recommended: 1-piece CenterLine - Weight Based On: Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) - Weight (g): 415
