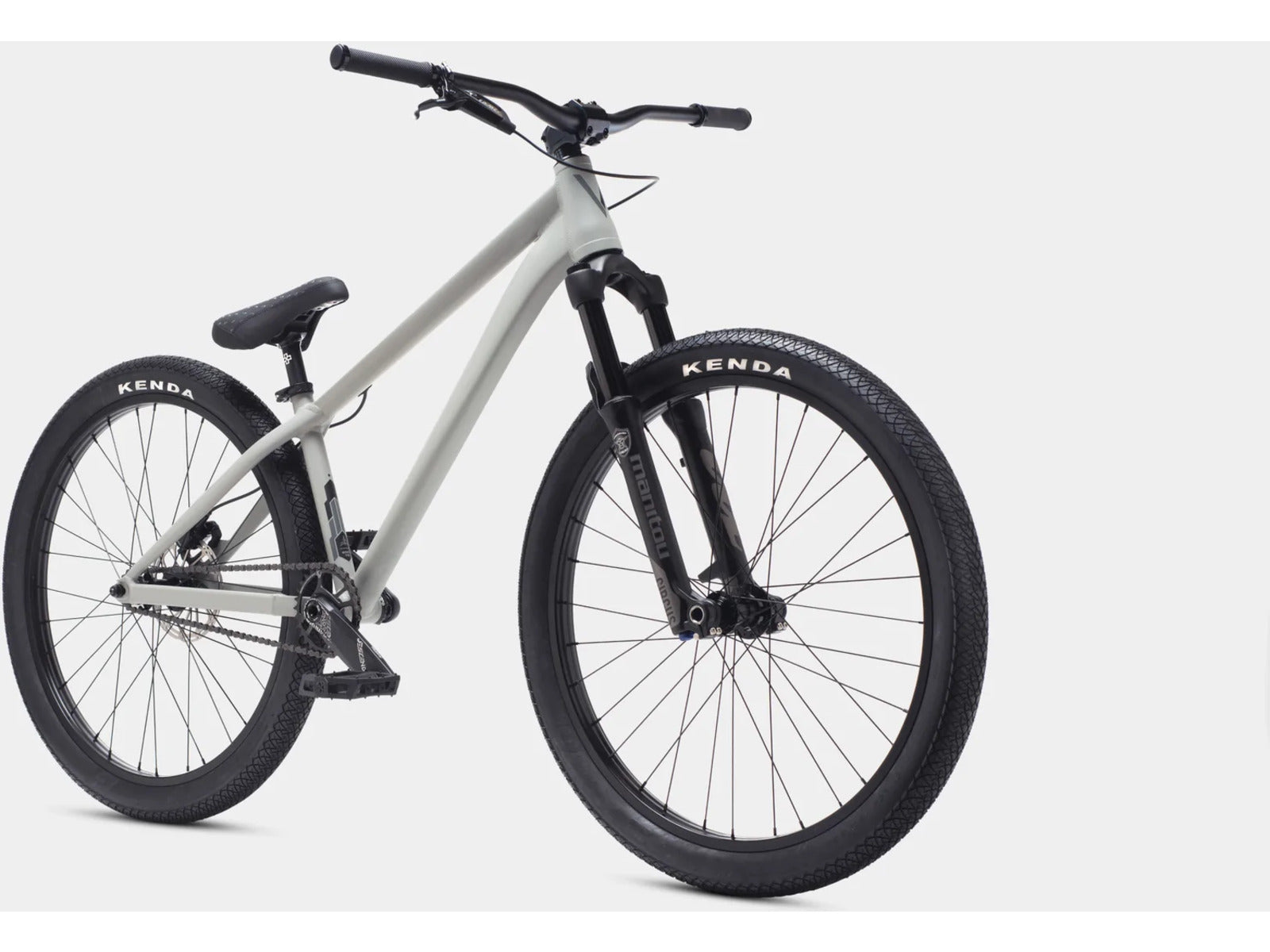

Vertex DJ26

Frame: 6061 series aluminum w/ CNC machined 1.5” tapered head tube, internal cable routing, Euro BB with chainstay yoke, and custom CNC machined dropouts - Top Tube Length: 22.25” (22.97” effective) - Chain Stay Length 15.25” - Head Tube Angle 69º - Seat Tube Angle 72º - Bottom Bracket Height 12.6” - Standover Height: 12.5” Parts Spec - Fork: Manitou Circus Expert, 100mm travel, 41mm offset, 1.5” taper - Bars: 6061 aluminum, 1” rise, 31” wide (787mm), 31.8mm clamping area - Stem: Front load, 30mm reach - Headset: Sealed internal, Zero Stack 44/56, 1-1/8” to 1-1/2” tapered - Brake: SRAM Level T hydraulic disc - Rotor: SRAM Centerline 160mm, stainless steel - Lever: SRAM Level T hydraulic disc w/ hinged lever - Rear Hub Alloy, fully sealed, 10mm (3/8”) axle, 14-tooth driver - Front Hub: Alloy, fully sealed, 20mm thru-axle - Sprocket: SRAM 30-tooth X-Sync 2 direct mount chainring - Cranks: Truvativ Descendant 6K DUB, 165mm - BB: SRAM DUB BSA, 73mm - Chain: KMC Z-510, silver - Pedals: DUO Brand Resilite platform - Front Rim: 6061 aluminum, double wall, 32-hole - Rear Rim: 6061 aluminum, double wall, 32-hole - Spokes: 14G black w/ black nipples - Front Tire: 26 x 2.25” Kenda 3-Sixty, 65psi - Rear Tire: 26 x 2.25” Kenda 3-Sixty, 65psi - Seat: DUO Brand Waves seat/post combo - Seat Post: Alloy, 27.2mm diameter, 200mm length - Seat Clamp: Alloy, quick-release - Grips: Lock-on, 130mm - Weight: 27.1 lbs
