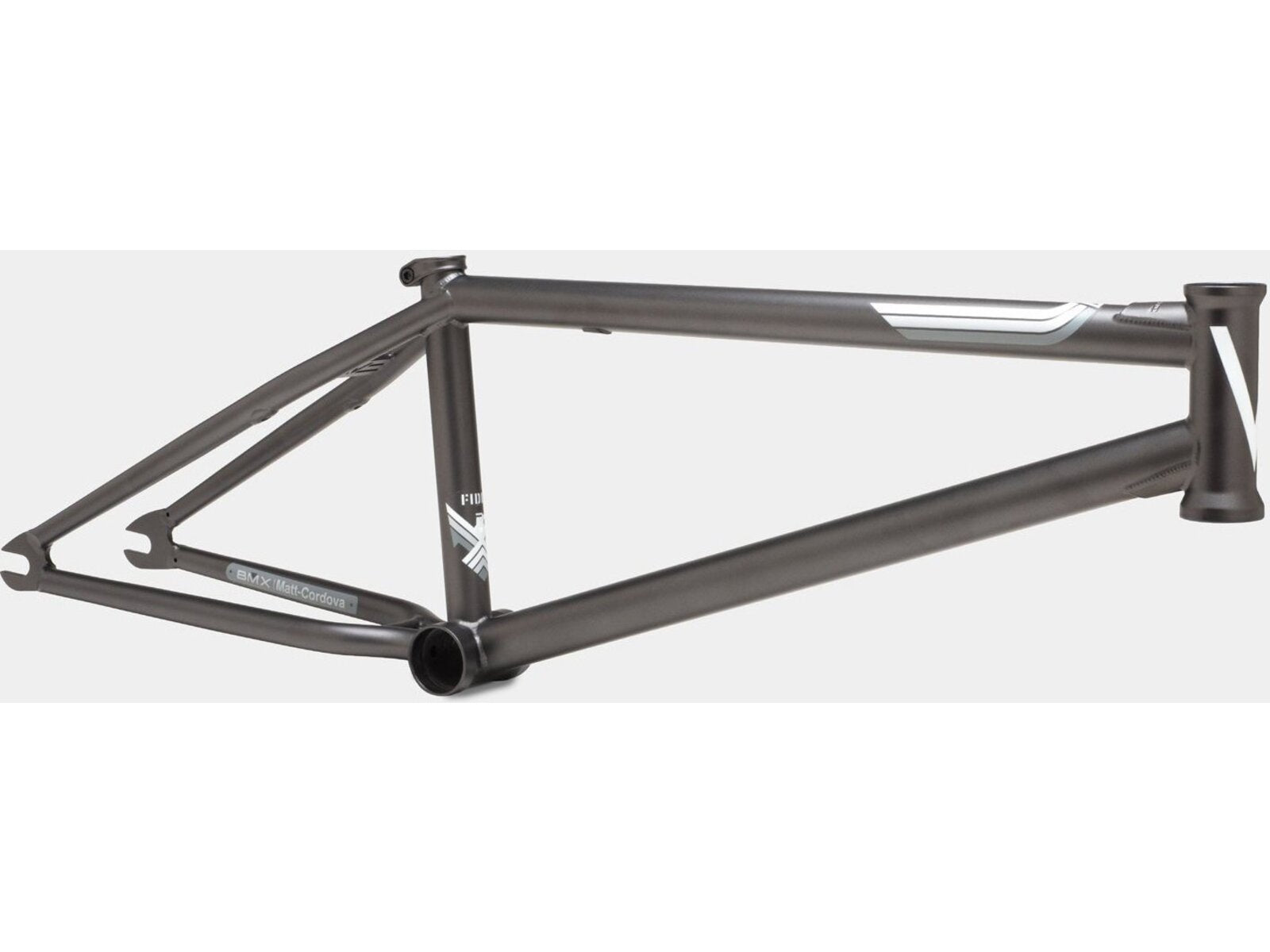

Fides Frame

Matt Cordova’s riding demands more, so we created the Fides frame. The name Fides is Latin for “Good Faith.” The frame’s name, art, and design were all formed under Matt’s direction. He wanted a strong frame with a tall standover that needed to be light enough to blast on all terrains. The Fides is built for high speeds and higher altitudes. Spec - Top Tube Length: 20.5”, 20.75”, 21”, or 21.25” - Chain Stay Length: 13.5” - Head Tube Angle: 75º - Seat Tube Angle: 71º - Bottom Bracket Height: 11.8” - Standover Height: 9” Details - Matt Cordova signature frame - 1970’s motorcycle inspired graphics - 100% 4130 chromoly tubing - CNC machined integrated head tube - Double butted top and down tubes - Dual top and down tube gussets for additional strength - Tapered seat stays w/ removable brake mounts - Tapered chain stays - Integrated seat post clamp (accepts a 25.4mm post) - Externally machined Mid bottom bracket shell - 5mm thick dropouts (accepts a 14mm axle) - Custom laser cut brake bridge - Weight: 4 lbs 9.6 oz
