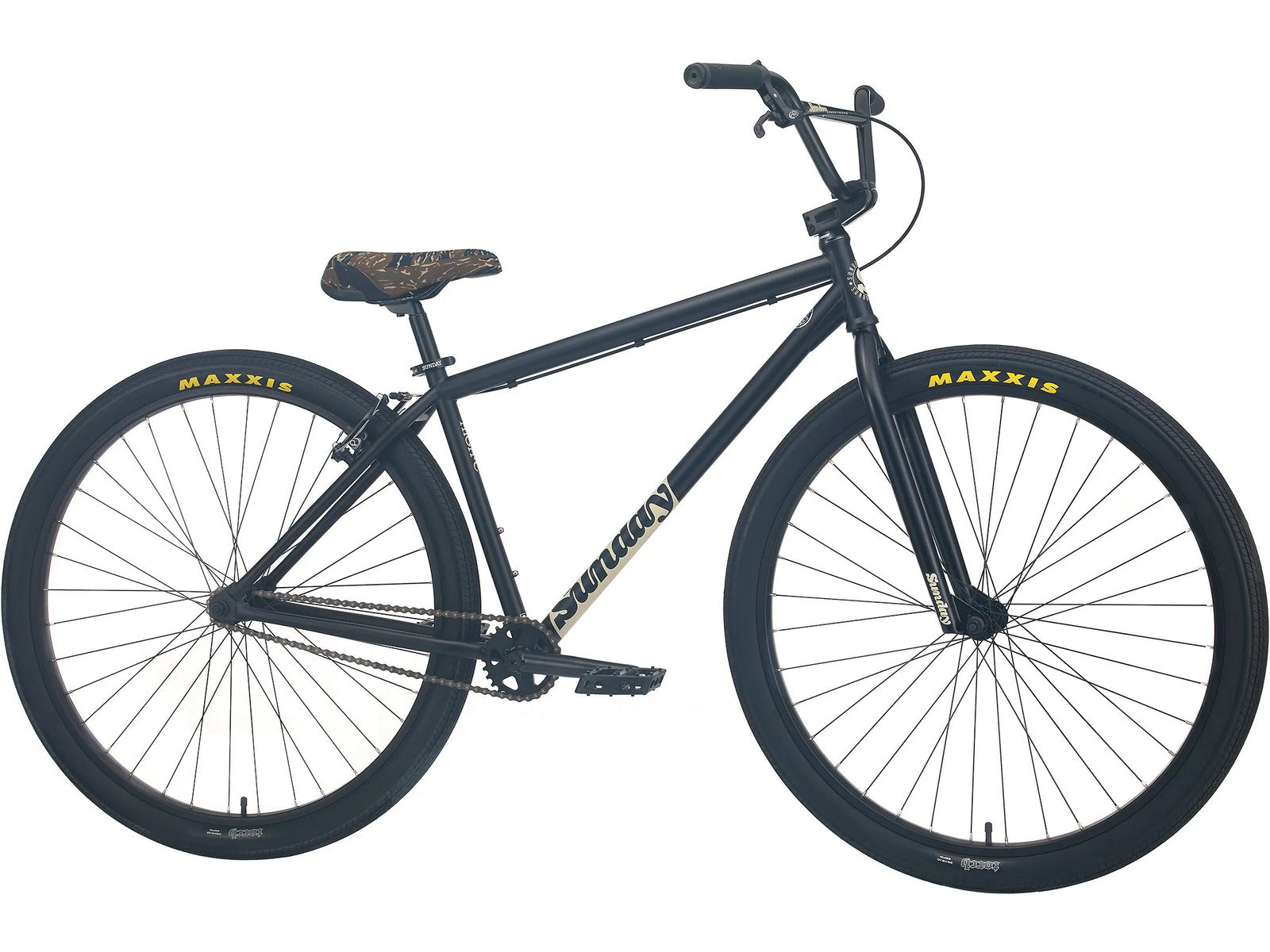

High-C My2023

Frame: Sunday High-C, 23.5" top tube, 100% chromoly frame - Fork: Sunday High-C, 29", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load - Handlebar: Fairdale MX-6, 100% chromoly, 2-piece - Stem: Sunday Freeze top load, 48mm - Headset: FSA integrated conical, 1-1/8" - Alloy Cap: Sunday M16, aluminum - Brake Lever: Avid FR5 - Brakes: Aluminum V-Brake - Brake Cable: Sunday 2p - Grips: Sunday Cornerstone - Seat: Sunday Tiger Camo, Railed - Seat post: Micro-adjust, aluminum, 27.2mm - Seat Clamp: Sunday Quick Release, 29.8mm - Sprocket: Sunday Sabretooth v2, 27T, 6061 aluminum - Cranks: 175mm, 3-piece, chromoly - BB Parts: Sealed, Mid, 19mm - Pedals: Odyssey Twisted PC Pro - Rims: DP-24 aluminum, 29", 36H, double wall - Front Hub: Sunday, 36H, low-flange, sealed , 3/8" axle - Rear Hub: Sunday, 36H, sealed , 3/8" axle w/ Odyssey 13T freewheel - Spokes: 14g steel, black - Tires: Maxxis Torch, 29 x 2.1" (F & R) - Chain: KMC Z1 wide - Approx. Weight: 29.1lbs Frame Geometry - Top Tube Length: 23.5" - Head Tube Angle: 71° - Seat Tube Angle: 71° - Chainstay Length: 17.5-17.75" - Bottom Bracket Drop: 2.5" - Seat Tube Length: 17.6" Handlebar Geometry - Rise: 6.25" - Width: 29" - Backsweep: 12° - Upsweep: 2°
