Weekender Disc

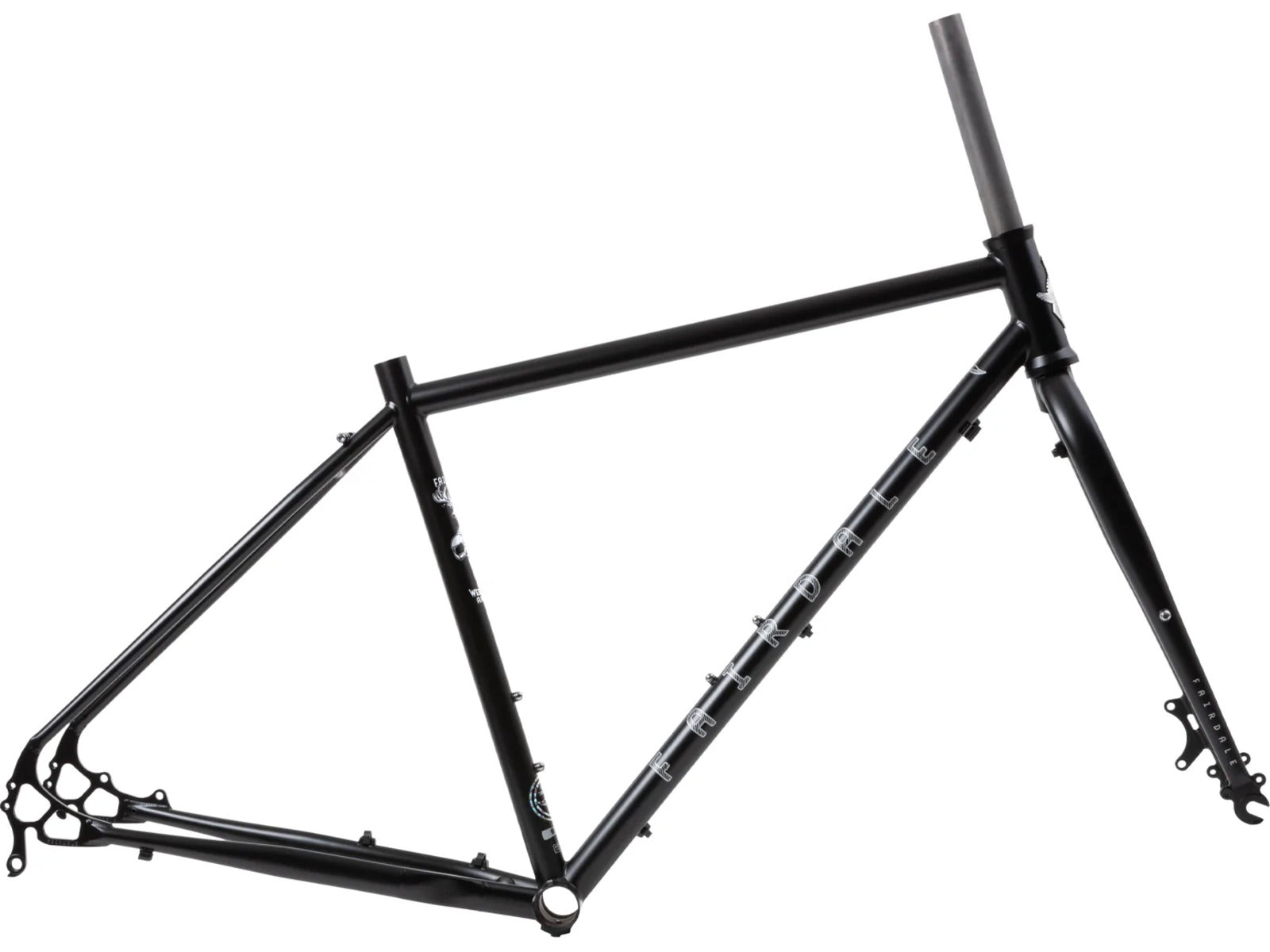

The Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul. The Weekender 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. It features redesigned geometry that is built around 27.5 x 2.0” tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.* Frame and Fork Kit available in Small, Medium, Large, and X-Large. *Please note that the Small Weekenders are not compatible with 700c wheels. Sizing Small: 5'2" 5'7" height Medium: 5'7" - 5'10" height Large: 5'9" - 6'1" height X-Large: 6'1"+ height Sizing is approximate. Please consult with your local bike shop to assist with fit. Geometry Size S (52cm) M (55cm) L (58cm) XL (58cm) Top Tube (Effective) 523mm 545mm 579mm 602cm Top Tube (Actual) 505mm 532mm 559mm 585mm Seat Tube Angle 74° 73° 73° 73° Head Tube Length 120mm 122mm 146mm 167mm Head Tube Angle 70° 71° 71.5° 71.5° Chain Stay Length 415mm 440mm 440mm 440mm Wheelbase 1005mm 1037mm 1058mm 1081mm Standover 745mm 765mm 800mm 830mm Stack 517mm 565mm 589mm 609mm Reach 373mm 380mm 398mm 414mm Fork Length 390mm 416mm 416mm 416mm Fork Offset 50mm 50mm 50mm 50mm BB Drop 54mm 72mm 72mm 72mm Dropout Spacing 135mm 135mm 135mm 135mm BB Type BSA 68 BSA 68 BSA 68 BSA 68 Seat Post 27.2mm 27.2mm 27.2mm 27.2mm Seat Clamp 30mm 30mm 30mm 30mm Max Tire Width 47mm 54mm 54mm 54mm Wheel Size 27.5" 27.5" 27.5" 27.5"
