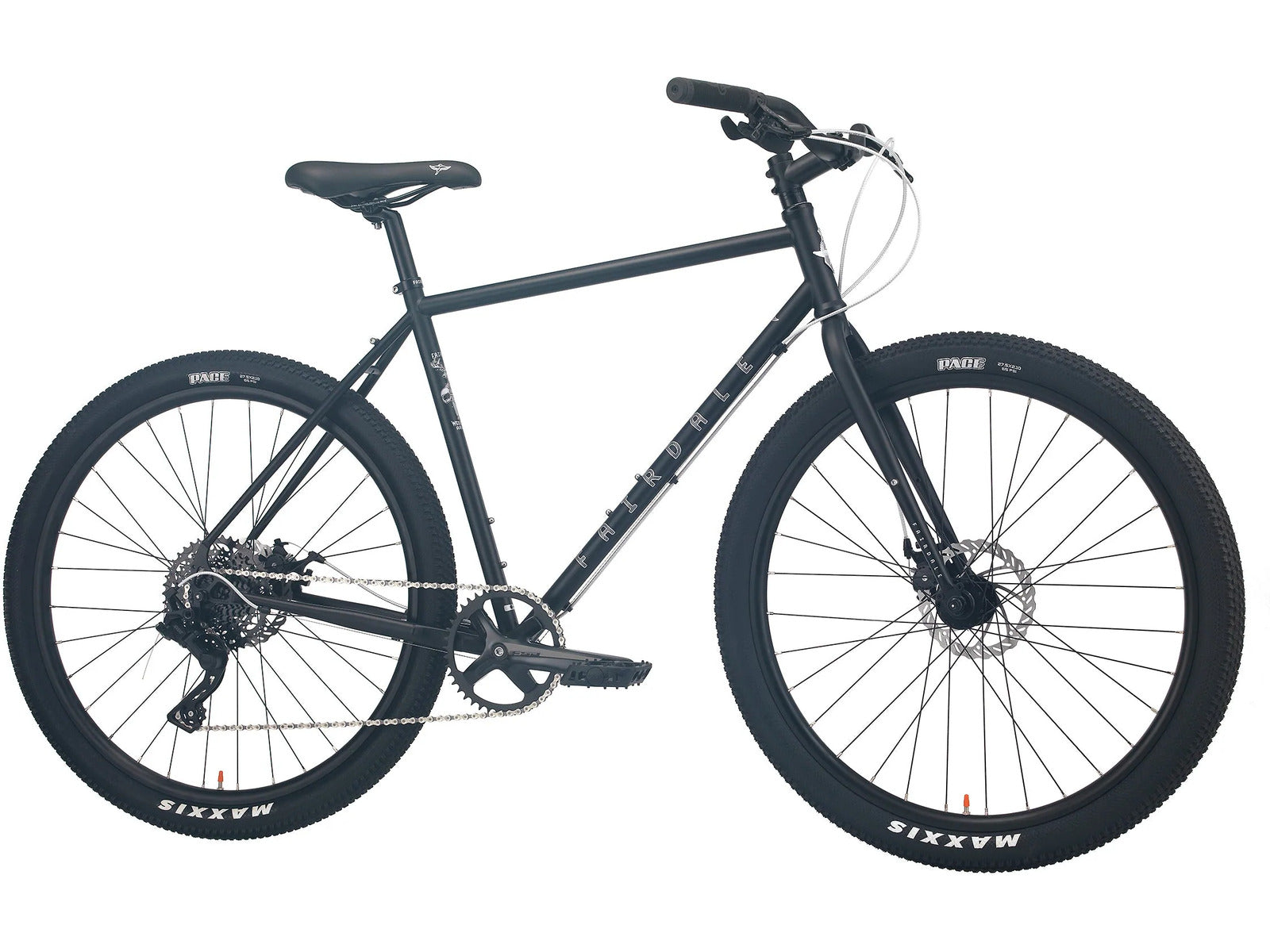

Archer 2023

Frame: 100% Chromoly, Disc, w/Rack and Fender mounts (M/L/XL 700c Compatible) Fork: 100% Chromoly. One-piece machined steerer tube Handlebar: Fairdale Archer v3, Aluminum Stem: 70mm, Forged Aluminum (60mm on XS) Headset: FSA, Sealed Integrated, 45º/45º Brake Lever: Promax XL-91 Brake: Promax DSK-717 Grips: Fairdale Swan Saddle: Fairdale Logo Seat Seat Post: Micro adjust, 27.2mm Seat Clamp: Fairdale, 30mm Cranks: FSA Vero Pro 1X NW (XS,S =165mm, M=170mm, L,XL=175mm) Chainwheel: 42t Narrow-Wide BB Parts: FSA Pedals: Odyssey Twisted PC Rims: 27.5"/650b, 32-Hole, Aluminum, Double Wall, Pinned Rim, Tubeless compatible Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle Tires: Continental Dbl Fighter III, 27.5"/650b x 2.0 (27.5” x 1.65” Maxxis Overdrive on XS/S) Chain: KMC X9 Cassette: MicroShift CS-H093, 11-42T, 9-Speed R. Shift Lever: MicroShift Advent Trigger, 9-Speed R. Derailleur: MicroShift Advent, 9-Speed Shift Cable: Fairdale GEOMETRY X-Small: 126 - 160 cm Small: 158 – 170 cm Medium: 170 - 180 cm Large: 180 – 186 cm X-Large: 186 cm +
