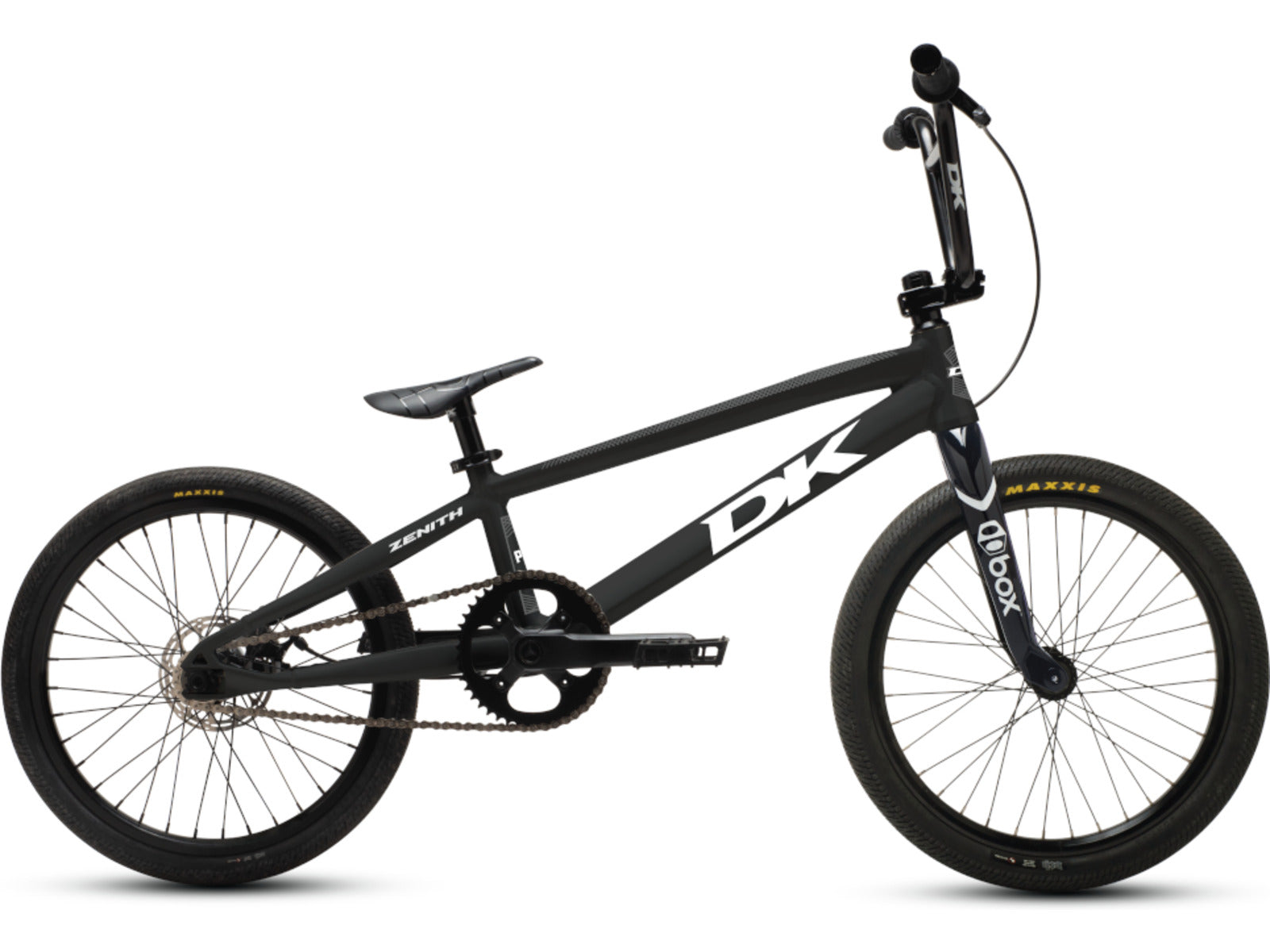

Zenith

Frame: DK Zenith Disc hydroformed 6061 aluminum frame with tapered head tube, internal cable routing, CNC machined bridges, and forged sliding flat mount disc brake system - Fork: BOX X⁵ carbon with 20mm thru-axle - Bars: 8” rise, 100% chromoly - Grips: DK Tsuka lock-on with press-in bar plugs - Stem: DK forged alloy top load, 50mm reach - Headset: DUO Brand, sealed integrated, tapered - Brake: Tektro dual piston flat mount mechanical disc brake with 140mm rotor - Lever: Tektro MT 2.1 - Cranks: DUO Brand C2 forged hollow alloy 2-piece, 175mm - BB: European external (outboard) - Sprocket: DUO Brand 44-tooth, CNC machined, alloy, 4-bolt chainring - Chain: Taya TB980 3/32” - Pedals: DUO Brand Resilite platform - Rims: DUO Brand R2, double wall, 36-hole, front and rear specific design - Front Hub: DUO Brand R2, fully sealed, 20mm thru-axle - Rear Hub: DUO Brand R2 Disc, fully sealed, 15mm thru-axle, 16-tooth cassette with 120 engagement points - Tires: 20x1.75” (rear), 20x1.95” (front) Maxxis Torch - Seat: BOX Echelon 1-piece seat/post combo - Seat Post: Integrated, 27.2mm, alloy - Seat Post Clamp: Promax quick-release 20" Geometry - TT: 20.5” (Pro), 21" (XL), 21.5" (XXL), 22" (XXXL) - CS: 14.83” - HA: 74º - SA: 72º - BB: 11.1” 24" Geometry - TT: 21.75" - CS: 15.25" - HA: 73° - SA: 72° - BB: 11.9"
